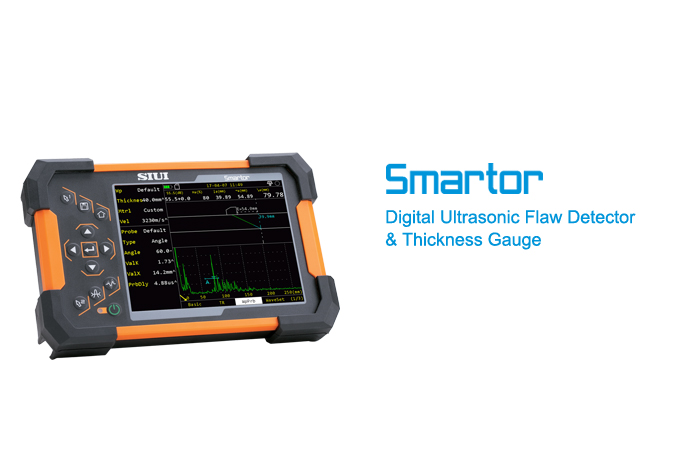

Smartor
- Upgradeable

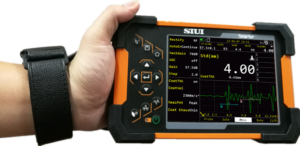

One-hand Operation

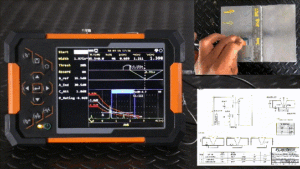

- Flat Weld Simulation
Up to 14 types of weld simulation, with dynamic beam tracking to visualize the flaw location.

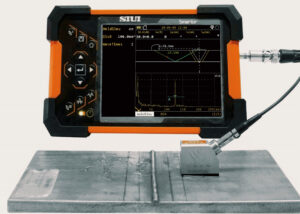

- Ultrasonic Weld Inspection
- IP 66
- Compact size: 198 (W)* 128 (H) *52 (L) mm
- Light weight: 0.9kg only, including battery
- 5.7" LCD with high resolution 640×480 pixels
- Ultrasonic testing functions：
√ Standard: Weld/ plate/ forging test wizards, DAC, AVG/ DGS, AGC (Auto gain control), peak memory, video record, etc.
√ Optional: B-Scan, TCG, FFT (probe spectral analysis), CSC (curved surface correction), flat weld simulation, crack height measurement, BEA (backwall echo attenuator), AWS, API 5UE.
- Ultrasonic thickness measurement functions：
√ Standard: A-scan thickness measurement (echo to echo mode, through coating measurement), auto-search, velocity measurement, alarm and dataset management.
√ Optional functions: CoatMode, B-Scan, multilayers, Vpath, TDG and temperature compensation.
